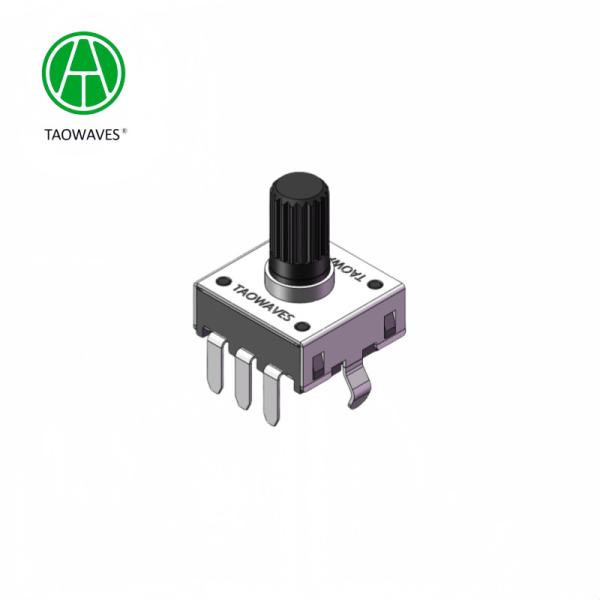

EC07 THT Vertical Encoder Incremental Encoder 0.2mm Switch Travel

Name: EC07 THT Vertical Encoder Incremental Encoder 02mm Switch Travel
Brand: TAOWAVES
Price: 0.38 USD

Best EC07 THT Vertical Encoder Incremental Encoder 0.2mm Switch Travel wholesale

Brand Name : TAOWAVES

Model Number : EC07B10V01

Certification : ISO9001,ISO14001and IATF16949

Place of Origin : CHINA

MOQ : 2,000pcs

Price : 0.38~0.58usd

Payment Terms : T/T, 30%+70%

Supply Ability : 5,800,000pcs/Month

Delivery Time : 5-16days

Packaging Details : Carton outside

Size : 7mm

Trademark : TAOWAVES

Pulse Number : 9pulses/360°

Type : Incremental

Customized : Support Customization

Function : Rotary encoder

Signal Output : Voltage Output

Rotational life : 100,000cycles

Travel of switch : 0.2mm±0.1mm

Contact Now

EC07 THT Vertical Encoder Incremental Encoder 0.2mm Switch Travel

EC07 THT Vertical Encoder Incremental Encoder 0.2mm Switch Travel
EC07 Series Encoder Specifications

1.Electrical Characteristics
Rated voltage:	DC 5V
Resolution:	9pulses/360°
Insulation resistance:	50MΩ Min at DC 250V
Dielectric strength:	1 minute at AC50V
Phase Difference:	T1,T2,T3,T4≥4ms

2.Mechanical Characteristics
Total ratational angle:	360°(Endless)
Detent torque:	1.0-3.0mN.m.(20±10gf.cm)
Shaft wobble:	0.7*L/30mm p-p Max(L: mounting height)
Push-Pull Strength of shaft	8kg
Operation fore of switch:	200±50gf
Travel of switch:	0.2mm±0.1mm

3.Endurance Characteristics
Rotational life:	100,000 cycles
Push-life:	100,000 cycles
Operating temperature range:	-30ºC to+80ºC
Storage temperature range:	-40ºC to+85ºC

Our Factory
EC07 THT Vertical Encoder Incremental Encoder 0.2mm Switch Travel Application:

FQA:
1.What are the advantages of your factory?
Our factory has mold manufacturing workshop, plastic injection molding workshop and lathe center. 80% of the raw materials are supplied by ourselves to ensure that the quality and delivery speed are higher than those of our peers.
2.Do you support customization?
Yes, customization is supported, we need you to provide drawings, usage and requirements.
3.What is your shipping port and the term of payment ?
Ex-work or FOB Shenzhen.
30% paid in advance, 70% balance before shipment by T/T.(First transaction requires 100% payment in advance.)
4.How long is your lead time?
It will take 3workdays for samples,7-15workdays for mass production.
5.Can I get samples from you?
Small amount of samples can be provided for free, but customers need to pay for air freight themselves.
6.What's your MOQ ?
Our MOQ is 2K. If it is a small batch order, the price needs to be increased appropriately.
